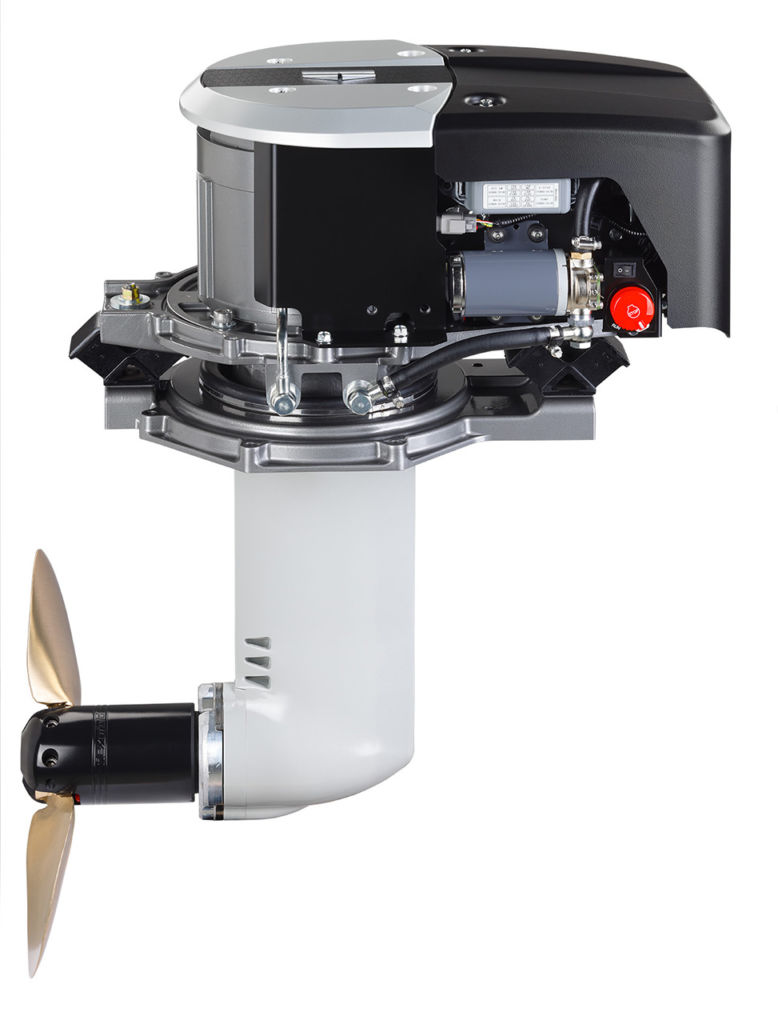

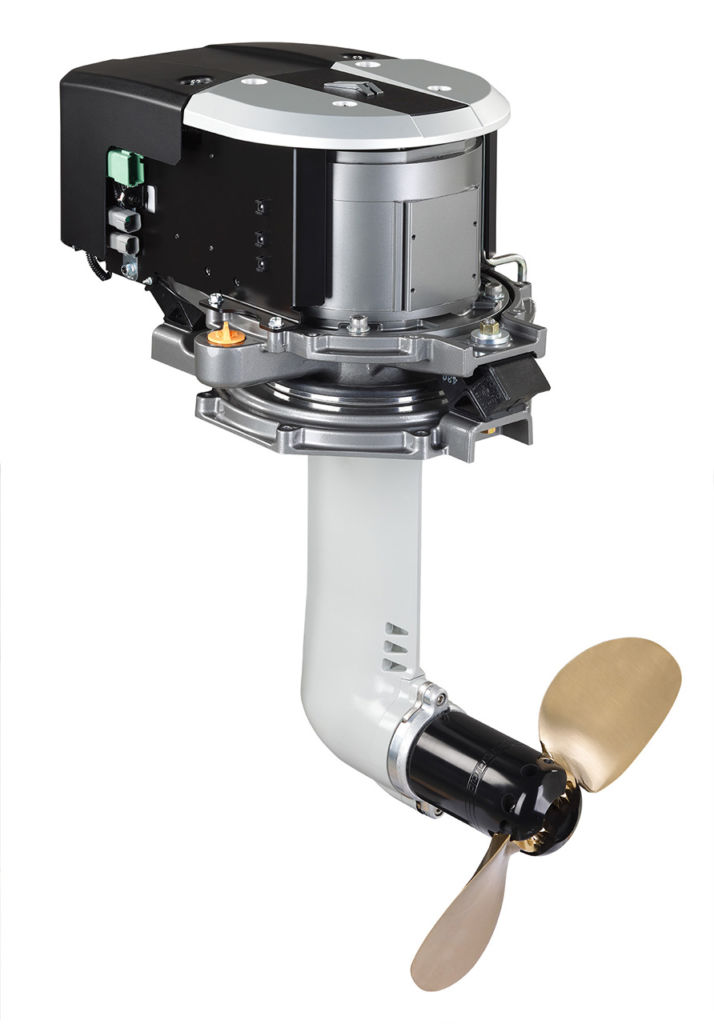

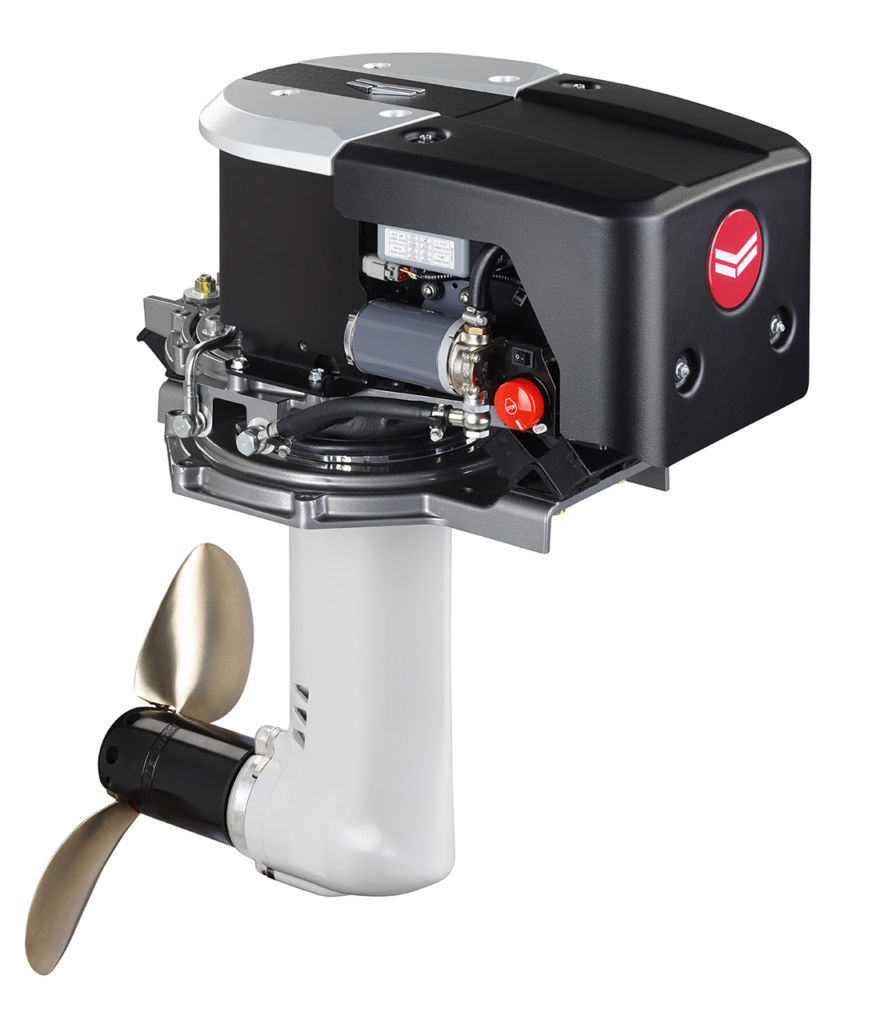

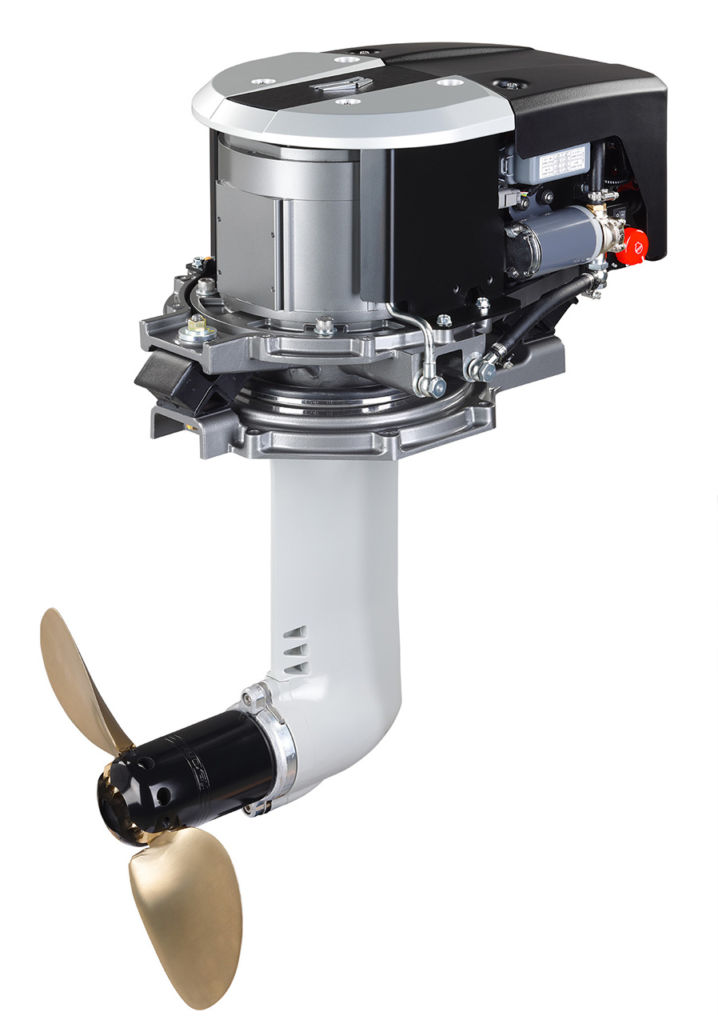

SDe15 Electric saildrive

Rated output15 kW / 20.4 mhp
Rated Speed2700 rpm
TypeSailDrive
Max Speed2900 rpm
Max Speed (Reverse Boost)3300 rpm
RatingS2-60
Gear Ratio2.13
Dry Weight78.0 kg
Dimensions (mm)793 x 636 x 424
Nominal Voltage48 VDC
Battery TechnologyLithium-ion LiFePO4

SDe15 Electric saildrive

Rated output15 kW / 20.4 mhp
Rated Speed2700 rpm
TypeSailDrive
Max Speed2900 rpm
Max Speed (Reverse Boost)3300 rpm
RatingS2-60
Gear Ratio2.13
Dry Weight78.0 kg
Dimensions (mm)793 x 636 x 424
Nominal Voltage48 VDC
Battery TechnologyLithium-ion LiFePO4

NOTE:
15 kW @2700 rpm*
Note: Battery and propeller are not included in standard delivery
S2-60 = Minimum 60 minutes at full rated output,
at sea water temperature 30 degrees C,
ambient air temperature 50 degrees C
